ShapeBookWith2D3DSteel

ShapeBookWith2D3DSteel

发行商: South Fork Technologies, Inc.
license: 709

界面快照:

最低
OS
架构x86,x64,ARM,ARM64
推荐
OS
架构x86,x64,ARM,ARM64

描述

ShapeBookWith2D3DSteel is a structural steel estimating tool, dimension, and properties reference, and a parametric 2D 3D steel shapes modeling application for AutoCAD. With the 2D3DSteel app for AutoCAD, you can quickly and accurately draw steel details, connections, and model structural steel framing. ShapeBookWith2D3DSteel is for professionals and students who work with structural and miscellaneous steel.

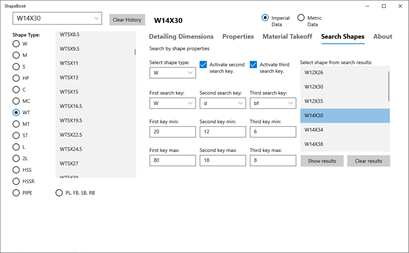

You can work with shape dimensions and properties, produce material take-off lists with price extensions for weight and surface area, search for shape sizes with up to 3 property keys providing the minimum and maximum values. ShapeBook is also available as a stand-alone app on the Windows Store. ShapeBook for Windows 10 devices and ShapeBookWith2D3DSteel for Widows 10 devices running AutoCAD. This Windows 10 release of ShapeBookWith2D3DSteel provides a handy touch interface, provides access to version 15.0 of the AISC data, and continues the 20 year legacy of the ShapeBook software.

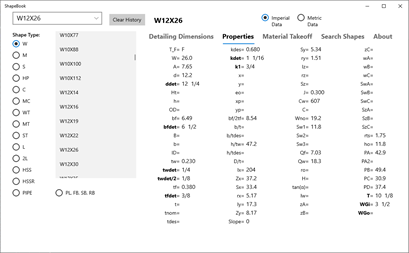

The shape dimensions are shown in a fractional format matching the AISC Manual of Steel Construction and the properties include handy descriptions available by hovering your mouse cursor over a property name. Property and dimension values can be cut and pasted into other software as needed. ShapeBookWith2D3DSteel saves your work automatically as you work and opens with your work loaded and ready to continue where you left off.


The shape data in this version of ShapeBookWith2D3DSteel is based on the AISC Shapes Database version 15.0 (V15.0) and is available in US imperial and metric units consistent with the AISC - American Institute of Steel Construction Manual, 15th Edition. Included is the ability to enter plate, flat bar, round bar, and square bar with weight, surface area, and price extensions. The take-off material lists include a dated title, page numbers, line numbers, and column and row outlines. The material lists can be saved to files and loaded back into ShapeBookWith2D3DSteel or imported into spreadsheet or database software. You can estimate steel based on price per pound and price per square foot. A method commonly used by fabricators, detailers, and coating professionals.


2D3DSteel is an AutoCAD application that parametrically draws and models steel shapes. It includes many specialized tools for drawing and dimensioning steel details. 2D3DSteel will run in any version of Full AutoCAD. It will not run on the LT versions of AutoCAD. All of the shapes available in ShapeBook can be quickly and accurately added to your CAD drawings. 2D3DSteel has a ribbon, pull-down menus, and 7 toolbars to access 61 powerful AutoCAD commands for use in your AutoCAD profiles.
