Boolean Algebra

Boolean Algebra

Kiadó: AppGrate
license: 3500

Képernyőképek:

Minimális
Operációs rendszer
Architektúrax86,x64,ARM,ARM64
Ajánlott
Operációs rendszer
Architektúrax86,x64,ARM,ARM64

Ismertető

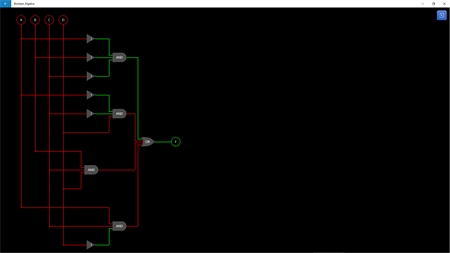

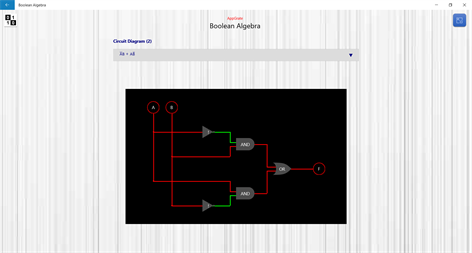

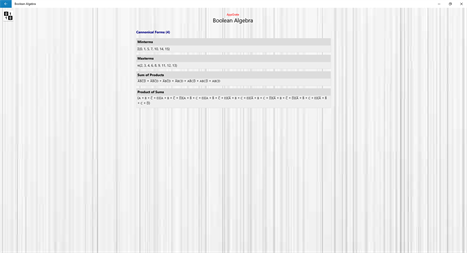

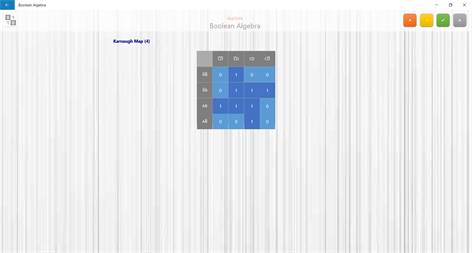

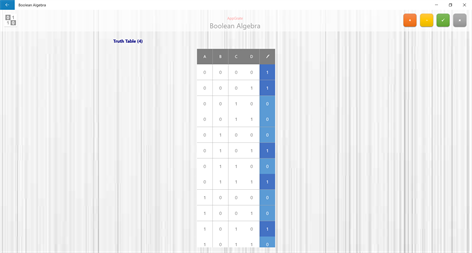

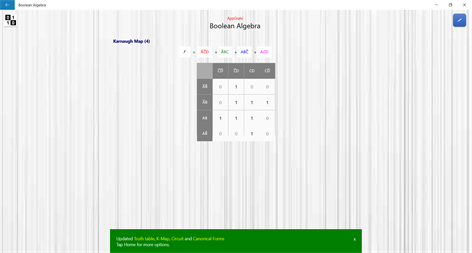

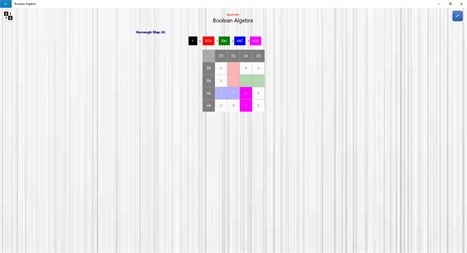

What it does, well almost everything. - Resolve complex Boolean expressions. - Directly update K-Map and derive minimized solutions (all possible minimal solutions, not just one). - Update Truth table and generate minimized K-Map values, corresponding circuit, and lot more. - View and interact with minimized circuit. You can also switch between all the minimal solutions available. - Tapping on the variable name in the circuit will toggle its value, zero or one, and update the circuit accordingly. - You also have an option to view Sum of Products, Product of Sums, Min terms and Max terms. - Interactive section(s) to learn more about all the gates (AND, OR, NOT, XOR, XNOR, NAND and NOR) - Rewritten circuits for higher performance, no overlapping lines and a full screen button - Better representation of K-Map solutions


What is next? - Quick search for minimized solution. - Easy to verify answers with explanation (why it is wrong) - Option to generate circuits using universal gates - Adding "do not care" option - Support for more than four variables - Zoom in/out in circuit - Dark mode
