SAVAmsix

SAVAmsix

Édité par: CSJakobsen Fruits
Licence: Gratuit

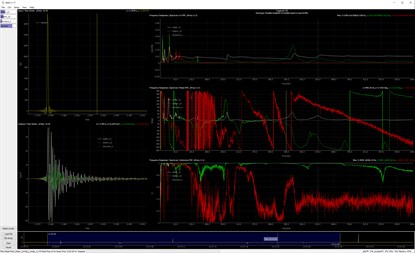

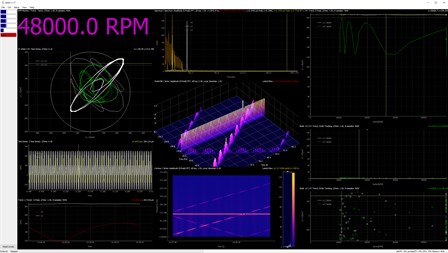

Captures d’écran:

Minimum
Système d'exploitation
Architecturex64
Nos recommandations
Système d'exploitation
Architecturex64

Description

A Signal Acquisition, Visualization & Analysis software package


* Signals, as in analog sensor data * Acquisition, as in data sampling/capturing/recording * Visualization, as in plotting raw/processed data * Analysis, as in live/post data processing


The software is thought as a general purpose, easy to use, data processing/visualization tool. However with a machinery dynamics focus in the build in analysis types.


Capabilities:


The software has build in support for National Instruments Daq equipment or it can load external source scripts, for customizable data sources.


Recordings happens via a custom/open Hdf5 file format, but multiple formats can be imported / exported.


Raw and analyzed data can be visualized and inspected in real-time or via playback.


Most traditional signal processing methods are available, such as trending (Mean, Peak, Min/Max, RMS, Variance, Kurtosis, Skew, MAD) and frequency domain analysis (FFT, FRF). For machinery/rotor dynamics impact testing, tacho, order tracking, waterfall plots, orbit plots and bode plots are supported.
