Afanche 3D CAD Viewer Pro for PC (Full Version)

Afanche 3D CAD Viewer is a professional level 3D CAD file viewer for Windows PC. It is a great tool for visualizing, measuring, analyzing, converting, modifying and collaborating on a variety of 3D models. Our modern design makes it very easy to use (there is practically no learning curve) and the app is super fast. The price of the software is just a fraction of similar products offered by our competitors.

Dedicated video card including NVIDIA or AMD ATI is required to run the application.

Main features include:

Open many popular 3D formats including STL, Solidworks( .sldprt ), IGES (.igs/.iges), STEP (.stp/.step), JT, SKP (SketchUp), SCDOC (SpaceClaim), X_T / X_B (Parasolid), PLY, OBJ, 3DS, DAE (Collada), DXF (Autodesk) and DWF;

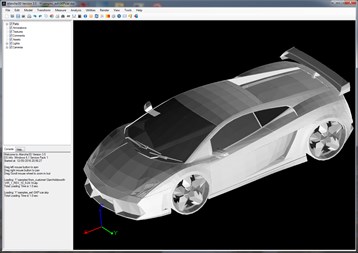

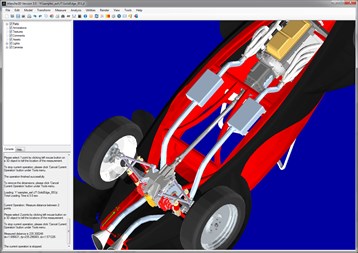

View models in 3D. Spin, pan, zoom in/out with perspective or orthographic projection; Support texture uv mapping; Measure distance, location, volume, area, length, radius, angle, thickness, boundary and many more; Open multiple files in the same window, very useful for assembly viewing or model comparison; Turn individual parts on and off to better view the model;

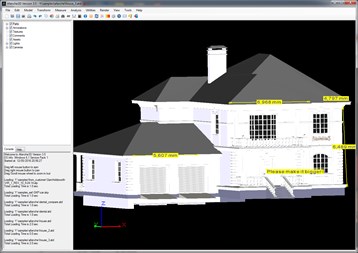

Support 3D notes and 3D dimensions for better presentation and communication; Support comment and asset management for better collaboration and record keeping; Scale, translate, mirror, rotate individual 3D part; Slice 3D model at any given position, very useful for 3D model repair and modification; Mesh boolean operation support, including union, subtraction and intersection;

Build 3D model from scratch with handy tools for model creation and modification; Repair 3D triangle mesh data with features including mesh normal flipping, mesh smoothing, mesh simplification, closing mesh holes and many others; Provide many useful features for 3D printing, including: check 3D model against build volume of 3D printer, fit 3D model with build volume, and many others; Strong support for 3D scanned point cloud data processing, including: triangulation, down sampling, outliers removal, segmentation and many others;

Export 3D model in STL, DAE, DXF, 3DS, OBJ, VRML, PLY, OFF, 3D HTML and ATD format, very useful for 3D format conversion; Export 3D rendering image in JPEG format; Support direct printing of 3D rendering;
